Alcohols (6) Esterification

Esterification is a reaction in organic chemistry that mirrors acid +base = salt + water in inorganic chemistry

Base      +  Acid         =      Salt    +    water

Alcohol + Organic acid  =  Ester    +   Water

Dr Carr’s Rescue Box: Naming Esters

This is where the examiner will make a sustained effort to

catch you out.

He knows that naming esters is tough for even the best candidates.

So how will we beat him?

A bit of counter-intuitive thinking is needed from us. I mean thinking backwards!!

Here is an ester structural formula   CH₃CH₂COOCH₃

How do we name it?

First find the –COO- group.

Note the alkyl groups either side, here we’ve an ethyl CH₃CH₂— and a methyl CH₃—

The ethyl is attached to the C of the COO group so that's the acid from which the ester’s named in this case 3 carbons or propanoic acid

The other alkyl group fronts up the name that is:

Methylpropanoate.

The conditions require the use of strong acid catalyst such as concentrated sulphuric acid (H₂SO₄) or hydrochloric acid (HCl).

The method is basically to heat the mixture of alcohol and organic acid and strong acid catalyst under reflux.

Then distill off the ester product.

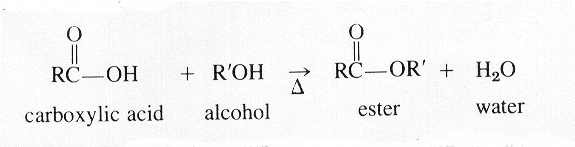

Here is typical reaction:

Both these equations correctly show that the water forms from the hydrogen of the alcohol and the —O—H of the carboxyl group.

A less complicated method is illustrated here:

Once the mixture has been heated for a few minutes it can be poured into sodium carbonate solution to neutralise the acid catalyst leaving us to smell the ester.

Alcohols (5) Dehydration of alcohols

The dehydration of alcohols appears fairly commonly in school and college chemistry courses.

Of course, dehydration means the removal of the elements of water from an organic molecule like an alcohol.

Several different reagents are or can be used but the common ones are aluminium oxide, concentrated sulphuric acid or phosphoric acid.

With aluminium oxide, Al₂O₃, the apparatus used is given below:

The problem with this and all other diagrams I can find on the Internet and in text books is that they suggest that the amount of aluminium oxide used is far too low.

The better method is to put the 2-3ml of alcohol in the bottom an upright test-tube, vertical at first not horizontal.

Then you add enough mineral wool to absorb the alcohol.

After that, fill the whole tube with aluminium oxide granules leaving just enough room for the bung and delivery tube.

Now turn the test-tube horizontal and you are ready to dehydrate your alcohol.

Heating the granules not the alcohol on the mineral wool should generate a steady flow of alkene bubbles.

But remember the first bubbles will be air from the tube—this stops briefly and then starts again and this gas is your alkene.

The equation is given on the diagram above.

You should be able to satisfy yourself that you can construct these dehydration equations.

You also ought to be able to see why butan-2-ol generates a mixture of two different alkenes.

Dehydration using a strong acid catalyst uses a different method.

The liquid alcohol is heated with the acid catalyst and the more volatile alkene (it no longer contains hydrogen bonds)  is distilled over or collected as a gas over water.

Advanced courses will also require you to build the reaction mechanism as here:

The stages are as follows

—Initial protonation of the alcohol —O—H by the acid catalyst,

—Loss of the elements of water leaving a carbocation.

—Rearrangement of the carbocation and loss of a proton

   facilitated by the very polar acid solvent.

Test for the Alkene:

The usual test for an alkene can be used just to confirm the product is what it is supposed to be

Add bromine water to the suspected alkene and cork and shake the test tube.

The orange bromine water turns colourless and confirms the presence of an alkene C=C double bond.
